Alternative Energy

LMF offers reliable solutions for today’s challenging demand for energy – whether it is bio-methane, hydrogen or other alternative fuels.

Based on the experience of more than 40 years since LMF developed the first emission-free natural gas compressor, ZERO EMISSION is our statement to avoid gas emissions and protect the environment.

Applications

● Grid feeding
● Power to gas (P2G)
● Filling stations for heavy-duty vehicles
    (HDV), trailers, trucks, buses, etc.
● Underground gas storage (UGS)
● On/offshore alternative fuel production
    facilities
● Upgrades of existing facilities to eliminate
    emissions

Available for pure hydrogen and methane or blends.

Technical Properties

● Power range:

    up to max. 6,000 kW
● Available number of throws: 2/4/6
● Stroke: from 90 mm up to  360 mm
● Oil-free compression

Equipment Features

● Pressure-tight crankcase

    up to 20 bar and 600 kW
● Horizontal balanced-opposed compressor
    based on API 618 and ISO 13631
● Horizontal cylinder arrangement  for
    saturated gases or for gases carrying
    liquids
● Different supply options available: bare
    block, fully packaged, containerized
● Turnkey solutions for complete stations
    available

Benefits

● Zero gas emissions

    up to 600 kW
● Low vibrations due to fully balanced
    design (no free forces)
● Prevention of damage caused by water
    and liquids
● Long service intervals
● Large service openings for easy
    maintenance

We care about the environment

Reduction of greenhouse gases

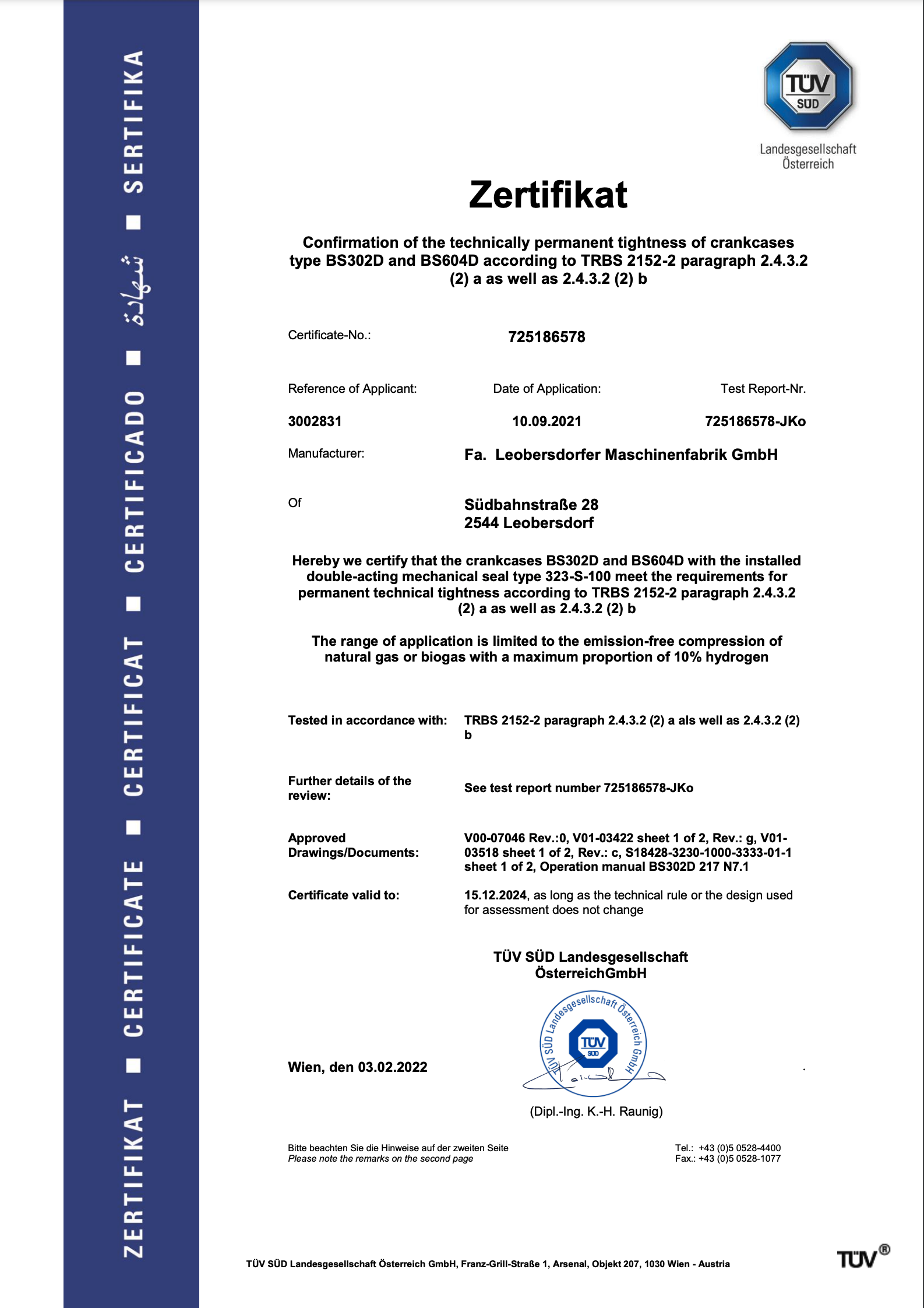

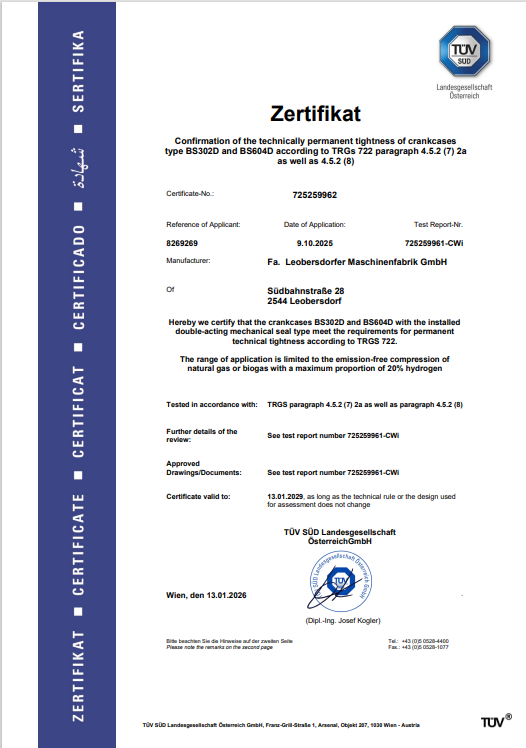

LMF’s design for emission-free compression of natural gas is CERTIFIED by TÜV.

References

UGS – underground gas storage Equipment: 2 x BS302D-114-N 6.6
Compressed gas: natural gas pipeline quality
Capacity: 15,000 Nm3/h
Main drive: 315 kW

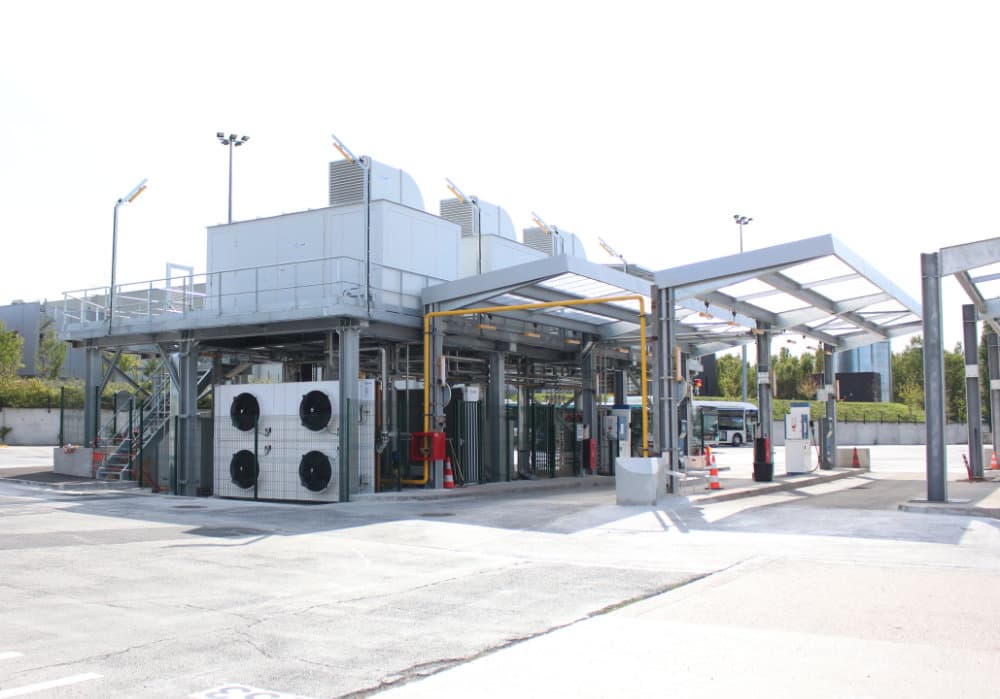

 CNG filling station for large consumers HDV – heavy-duty vehicles such as buses Equipment: 3 x BS 302 – 211 S 25.1
Compressed gas: natural gas pipeline quality
Capacity: 3 x 2,890 up to 3,500 Nm3/h
Main drive: 355 kW Synthetic gas mixtures - P2G – H2 – CBG – NG applications Equipment: 2 x LMF BS102-108 S 9.1
Capacity: 2 x 1,800 Nm3/h
Compressed gas: natural gas/biomethane CH4
Main drive: 2 x 132 kW Synthetic gas mixtures - P2G – H2 – CBG – NG applications Equipment: 1 x LMF BS604D-127 S 2.1
Capacity: up to 21,000 Nm3/h
Compressed gas: natural gas/biomethane CH4

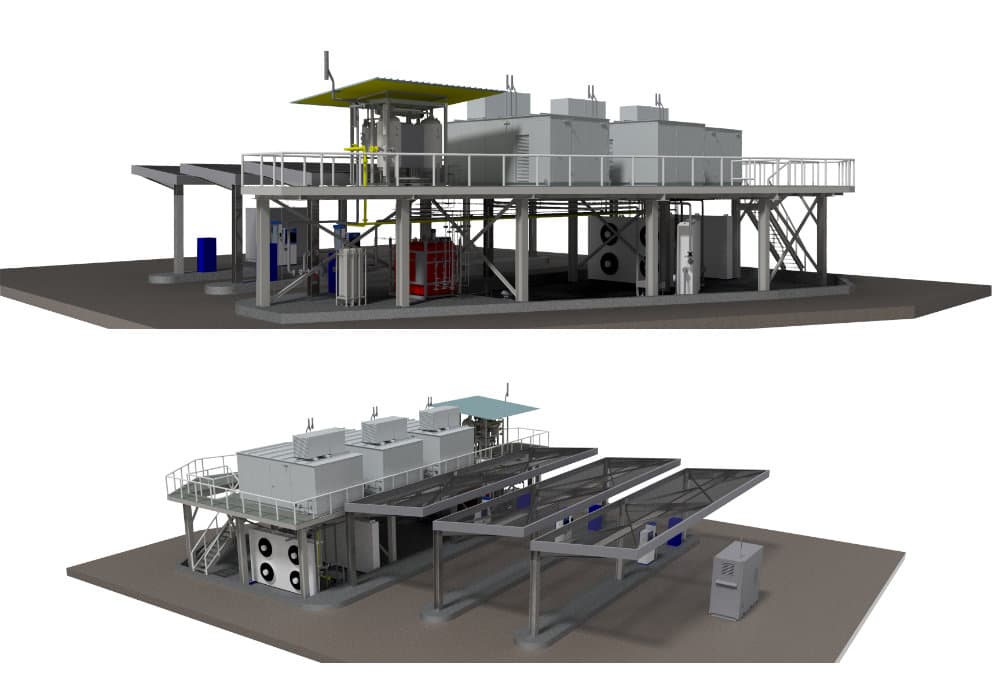

Main drive: 780 kW Examples project – Turnkey Equipment: large compressor portfolio ready to perform for your individual project
Capacity: < 1,000 up to > 200,000 Nm3/h
Medium/gas: from 2 up to > 20 kg/kmol H2 – CH4 – synthetic gases or individual gas composition
Main drive: <100 up to 6,000 kW
