Industrial Application

LMF’s high-pressure compressors for industrial applications are designed to meet your individual needs. We offer a full range of modular compressor systems for air and technical gases for various services.

Applications

● Circuit breaker
● Brake air
● High-pressure regulation
● Descaling
● Pressure testing
● Bottle filling
● Breathing air
● Starting air
● Astronautics


For air and technical gases.

Technical Properties

● Power range:

    from 5 to 125 kW
● Delivery pressure:
    from 30 to 450 bar
● Capacities from 5 to 1,000 m³/h
● Available number of cylinders
    2/3/4/5/6
● Number of stages: 2 to 6
● Lubricated and non-lubricated
    cylinders available

Equipment Features

● Rugged trunk-type design
● Air or water-cooled
● Proven high-pressure design

    up to 450 bar
● Fully packaged and automated
● Crosshead design available for
    non-lubricated service
● Pressure-tight crankcase upon request
● Tailor-made solutions

Benefits

● Plug-and-play design
● Long service intervals, lower
    maintenance costs
● Smart design for easy maintenance
● Superior lifetime
● No special foundation required
    due to rigid base plate, balanced
    design and shock absorber
● Exceptional service life

References

Compressor Type: V16 4411 L6.9
Capacity (FAD): 55 m3/h
Inlet Pressure: atm.
Discharge Pressure: 68 bar
Main Drive: 35 kW Air Compressor for Power Dam, Canada Compressor Type: VC-3236 N4.2
Capacity (FAD): 600 m3/h
Inlet Pressure: atm.
Discharge Pressure: 40 bar
Main Drive: 120 kW Water Cooled & Oil Free Air Compressor for Hydropower Plant, Philippines Compressor Type: V19 5621 L40
Capacity (FAD): 340 m3/h
Inlet Pressure: atm.
Discharge Pressure: 400 bar
Main Drive: 130 kW Air Compressor for Pressure Test Bench, Russia Compressor Type: V17 5518 L8
Capacity (FAD): 121 m3/h
Inlet Pressure: atm.
Discharge Pressure: 380 bar

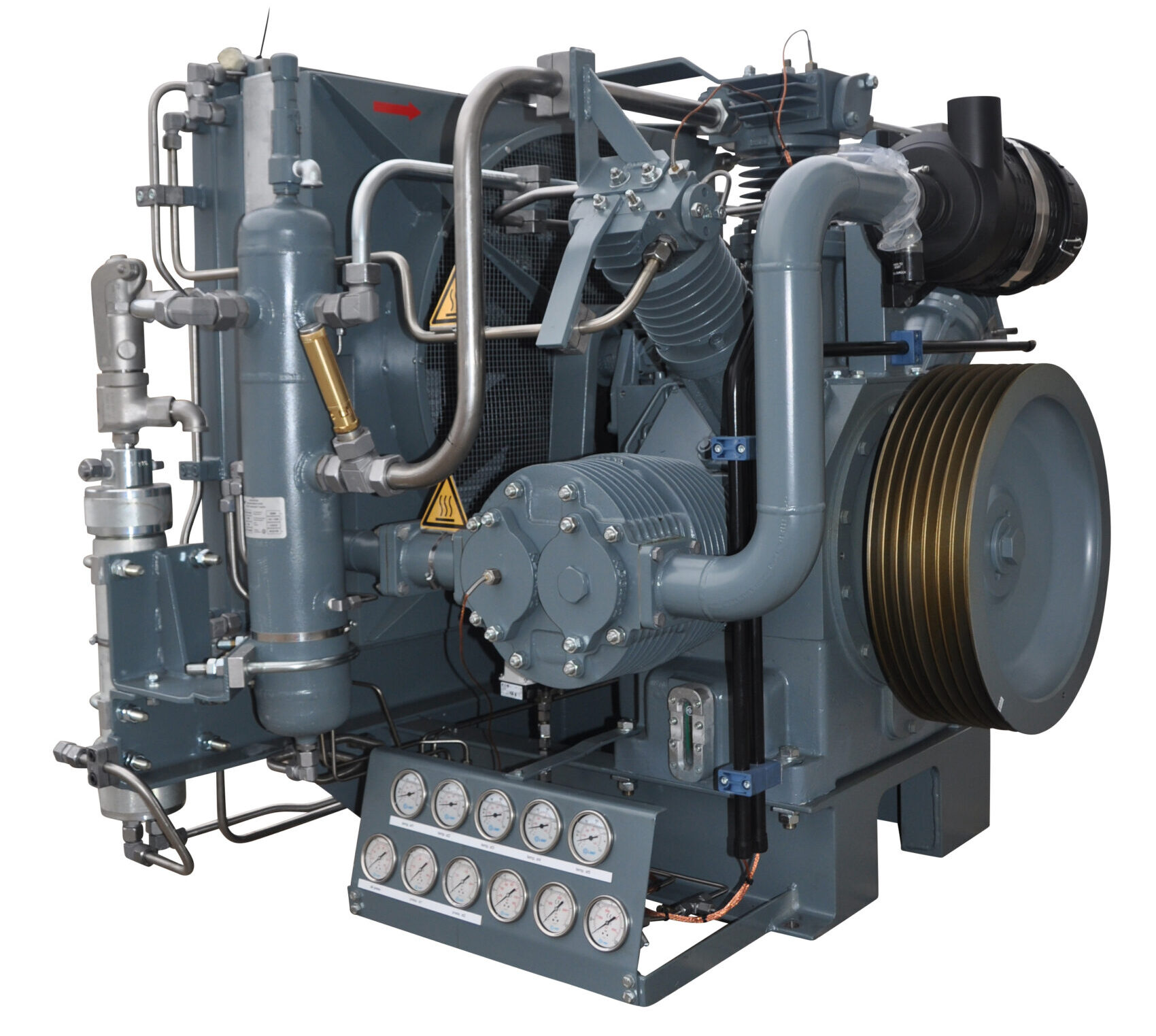

Main Drive: 55 kW High pressure air Compressor, USA Compressor Type: VC-3235 S7.6
Capacity (FAD): 620 m3/h
Inlet Pressure: atm.
Discharge Pressure: 75 bar

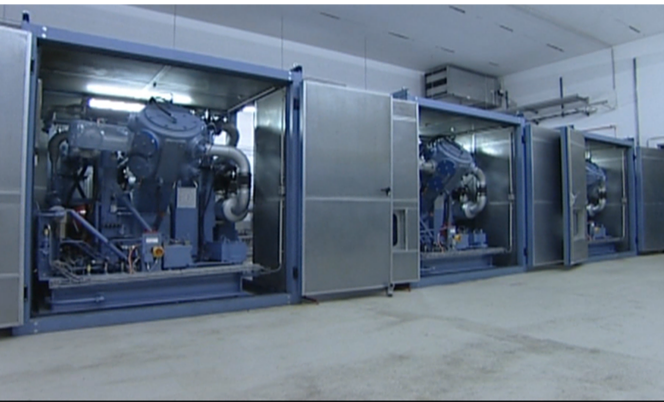

Main Drive: 170 kW Water Cooled & Oil Free Air Compressor for Pumped Storage, Germany Compressor Type: V17 4518 L8
Capacity (FAD): 218 m3/h
Inlet Pressure: atm.
Discharge Pressure: 80 bar
Main Drive: 65 kW Air Compressor for Hydroelectric Power Plant, Austria Compressor Type: V15 3408 L4.2
Capacity (FAD): 25 m3/h
Inlet Pressure: atm.
Discharge Pressure: 41 bar
Main Drive: 9 kW Air Compressor for Hydroelectric Power Station, Nigeria Compressor Type: V19 5621 L21
Capacity (FAD): 378 m3/h
Inlet Pressure: atm.
Discharge Pressure: 210 bar

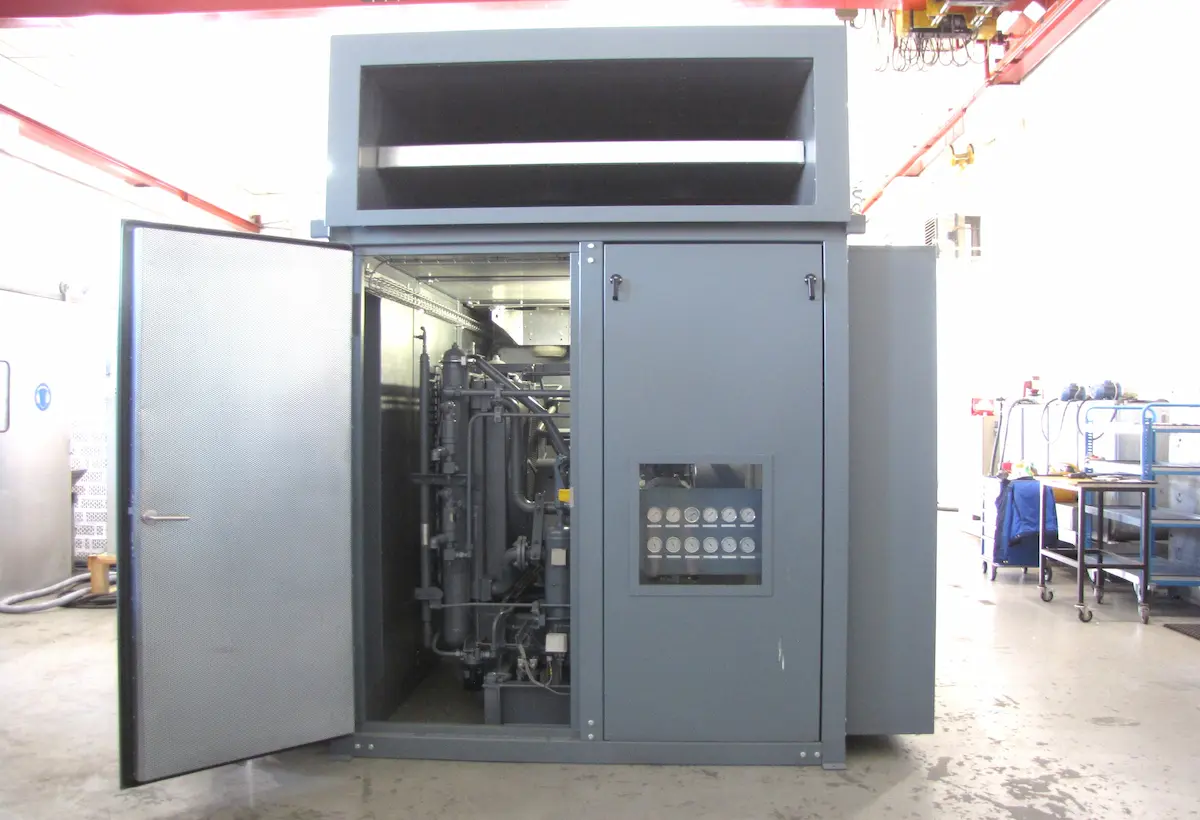

Main Drive: 130 kW Air Compressor for Space Research Center, India Compressor Type: V17 5518 L11.1
Capacity (FAD): 110 m3/h
Inlet Pressure: atm.
Discharge Pressure: 110 bar
Main Drive: 37 kW Air Compressor for Hydroelectric Renewable Energy, Canada Compressor Type: VC 3235 S 5.1
Capacity (FAD): 540 m3/h
Inlet Pressure: atm.
Discharge Pressure: 50 bar

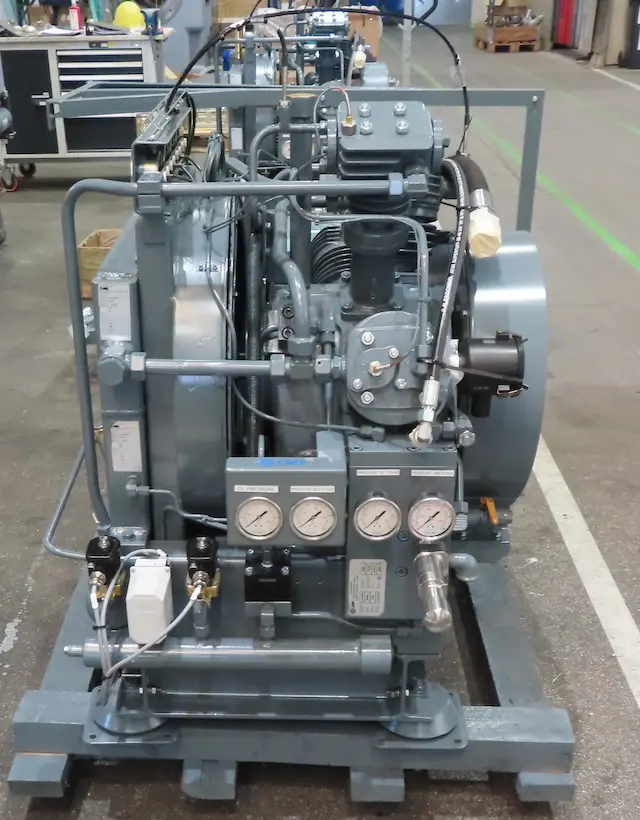

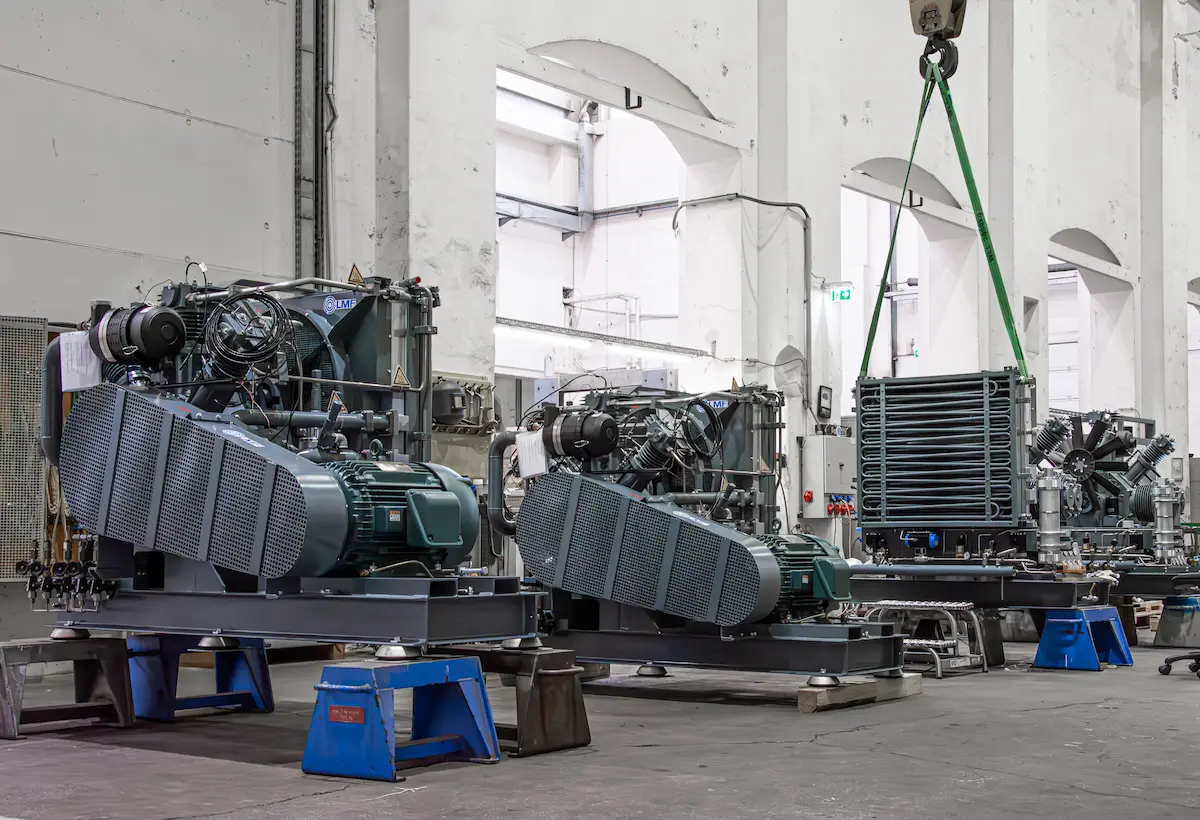

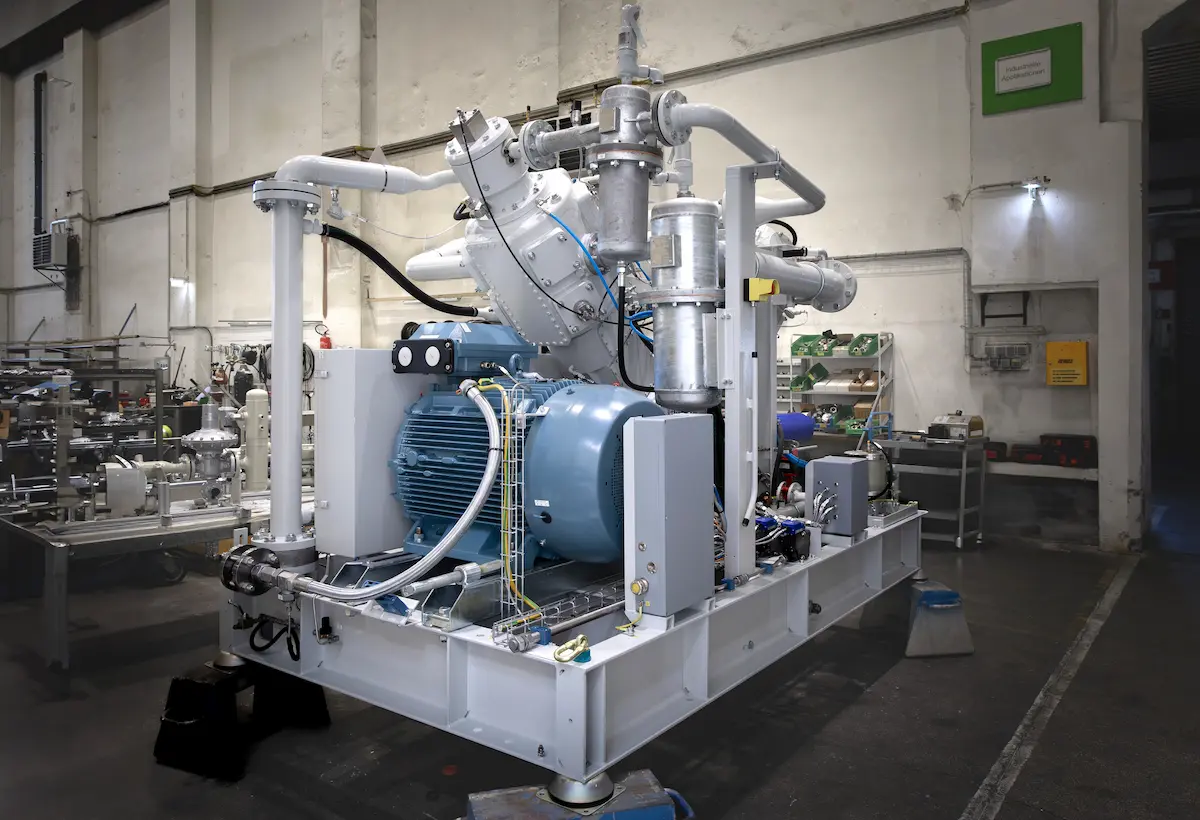

Main Drive: 132 kW Water Cooled Air Compressor for Large-Scale Hydroelectric Power Station, Iraq Hydroelectric Power plants in Nigeria Air Compressor - 1 x VC (14118) Air Compressor Renewable Energy from Hydroelectric power stations Hydroelectric Power Station construction and design

Testimonial

Verdichtertechnik GmbH

Highest reliability for compressed air supply in power plants is essential. Because of that, our customers prefer high pressure compressors from LMF GmbH. For over 40 years, LMF has been a loyal partner and supplier for us who can provide us with technical support and spare parts anytime and anywhere!

Verdichtertechnik GmbH
